The car has been sanded and blocked.

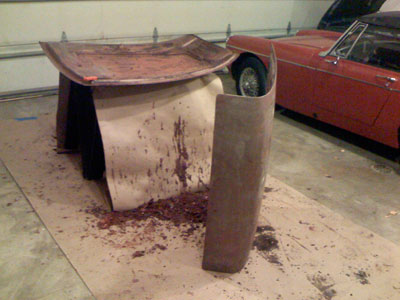

The bonnet and boot are stripped of paint chemically, holes from a long removed luggage rack are now revealed.

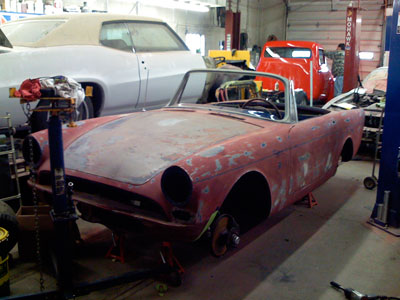

The body is being sanded the original paint is still showing from under the parts that were not removed when it was painted red.

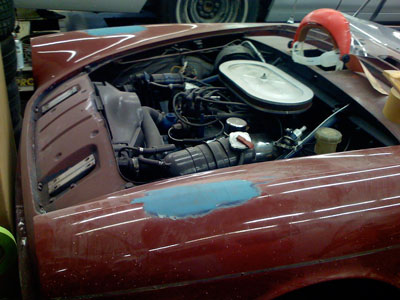

A few dents are addressed and then covered with fiberglass filler.

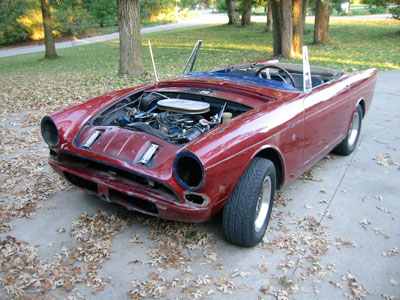

The car is pretty much stripped of the parts that will need to be removed.

Starting to strip the car down to be painted.

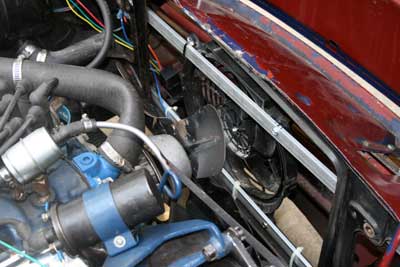

Installed an electric fan. This one is a 10″ Hayden fan with thermostatic control relay. I mounted it to two alluminum bars than that bolted into the holes next to each of the holes the radiator is bolted to.

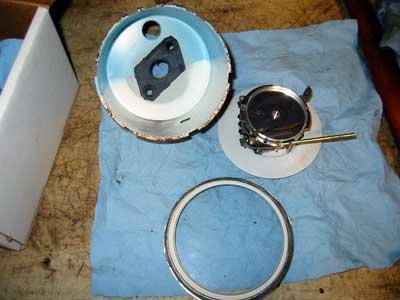

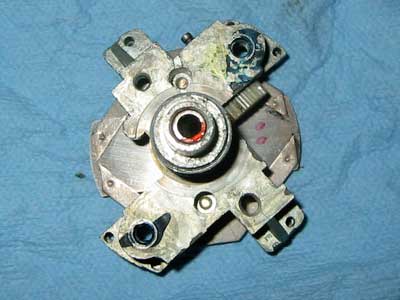

Speedometer rebuild.

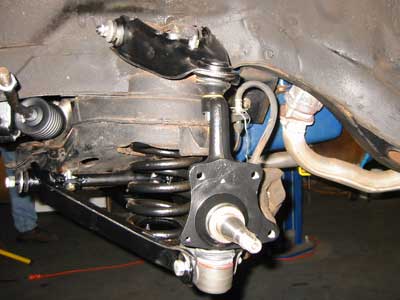

Rebuilt, aligned and ready to go.

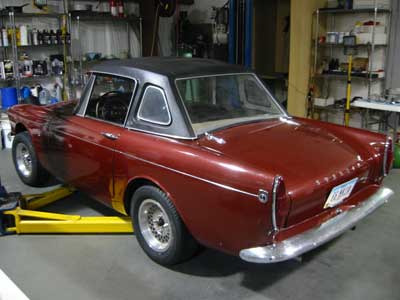

Test fitting the new wheels, tires, and hard top.

Reassembly.

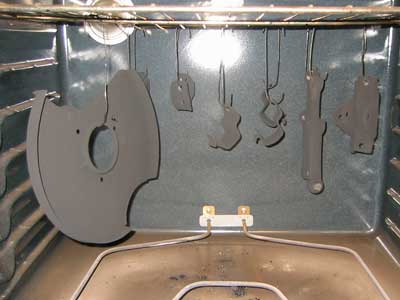

Above is parts powerder coated and ready to be baked.

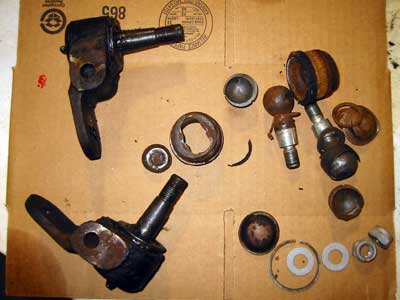

The ball joints were just waiting to fall completely apart.

Bottom is parts powdercoated and fasteners zinc plated and ready to be polished.

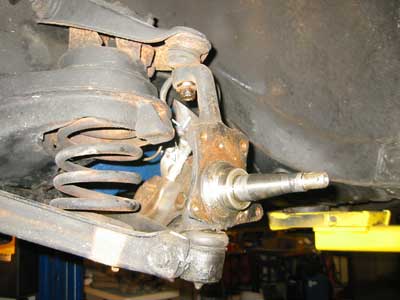

The ball joints are completely shot.

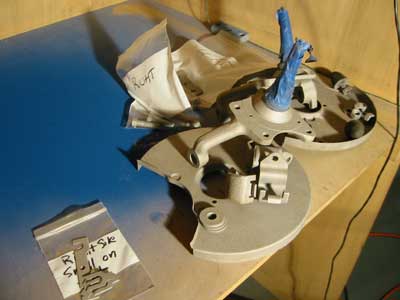

Bottom picture show the parts sandblasted and ready for powdercoating.

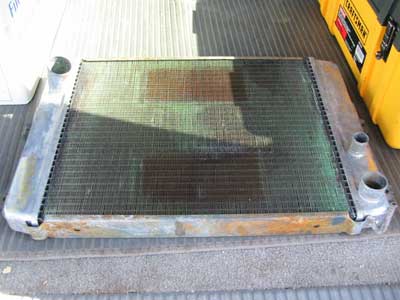

Tigers are usually plagued by overheating and this tiger was no different. The core was 10% blocked and a “new” one was needed. A second original tiger core was cleaned and rodded. The entire assembly was then painted with radiator black paint from Eastwood.

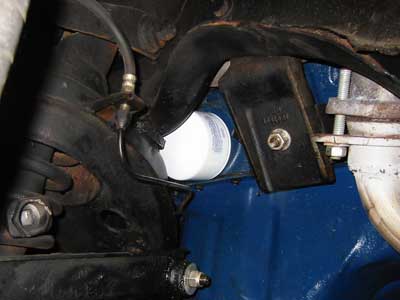

Using the stock Ford small block adapter this oil filter fits directly onto the engine. A tiger with headers may not be able to use this solution.
